CalciumSilicateBoardProductionLine

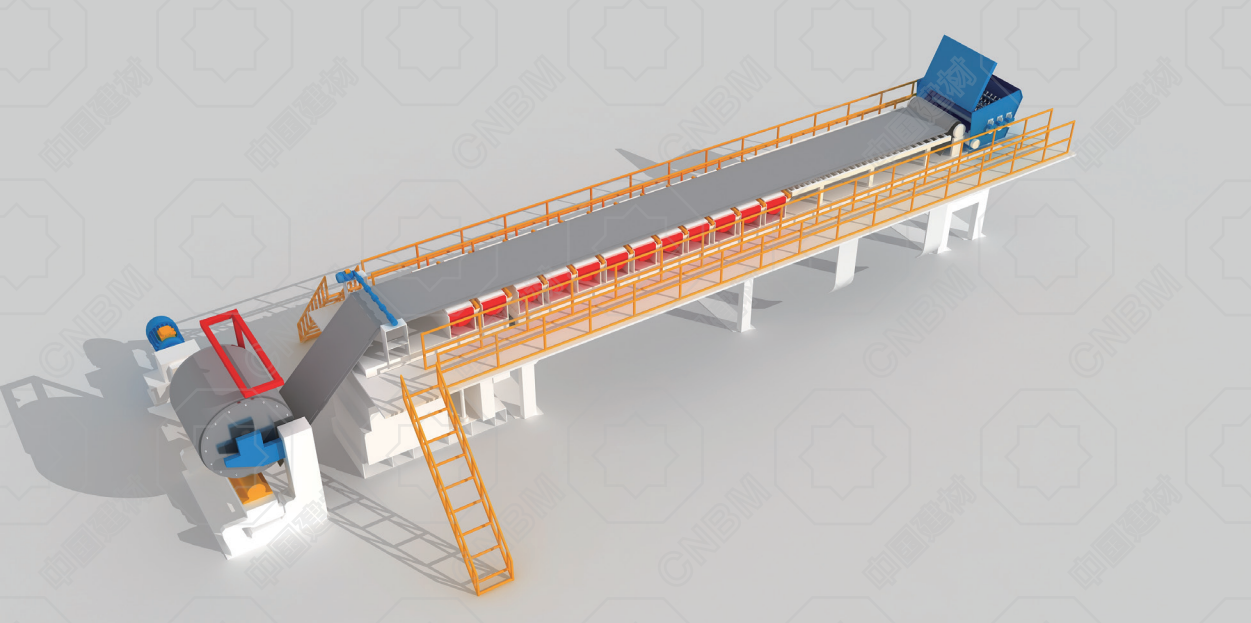

  The flow-on process is a method of producing fiber cement products, which uses high concentration slurry to lay on the felt, and the slurry is subjected to vacuum filtration, dehydration, and extrusion molding for many times to form a green sheet of the product.


Specification
Forming drum sizeΦ1650×1750mm
Felt speed40–90m/min
Forming drum linear pressure700N/cm(max)
Main drive motor power55–90kw
Felt washing water pressure0.8–1.5MPa
Vacuum boxes quantity8–10 Unit
Weight of equipment35t

Characteristics of flow-on process:

  1. The equipment is relatively simple and lower cost

  2. Reasonable energy consumption and lower operation cost

  3. Easy operation and convenient maintenance

  4. Low adaptability of raw materials

  5. Low water consumption and low loss of raw materials

Capacity:

Annual production of 3 & 5 million square meters Double width sheeting machine has an annual production of 8 – 10 million square meters


Note:Based on 6mm thickness
